Emerson TakahashiDisassembling and reassembling the Sanwa JLF-TP-8Y-SK-W from the Mad Catz Tournament Edition – Photos and List of Parts
Posted by Emerson Takahashi on September 19, 2011
Removing the ball top, shaft cover and dustwasher @ 4m10s
Disconnecting the cable @ 5m50s
Remove the restrictor plate @ 5m53s
The PCB connector is pointed away from the buttons
Remove the Sanwa JLF-E “E-Clip”, Sanwa JLF-P-5 Actuator, Sanwa JLF-SP Spring
Reassemble
If you need to order the JFL parts from Lizard Lick, here is what’s used inside
Left column: Samwa LB-35 Ball Top, Sanwa JLF-CD Shaft Cover Kit. Center column: Sanwa JLF-P-4 Pivot Cylinder, Sanwa JL-PP1 Dustwasher. Right column: Sanwa JLF-MW Metal Washer, Sanwa JLF-P-6 Spring Cover, Sanwa JLF-SP Spring, Sanwa JLF-P-5 Actuator
Between the joystick and top panel

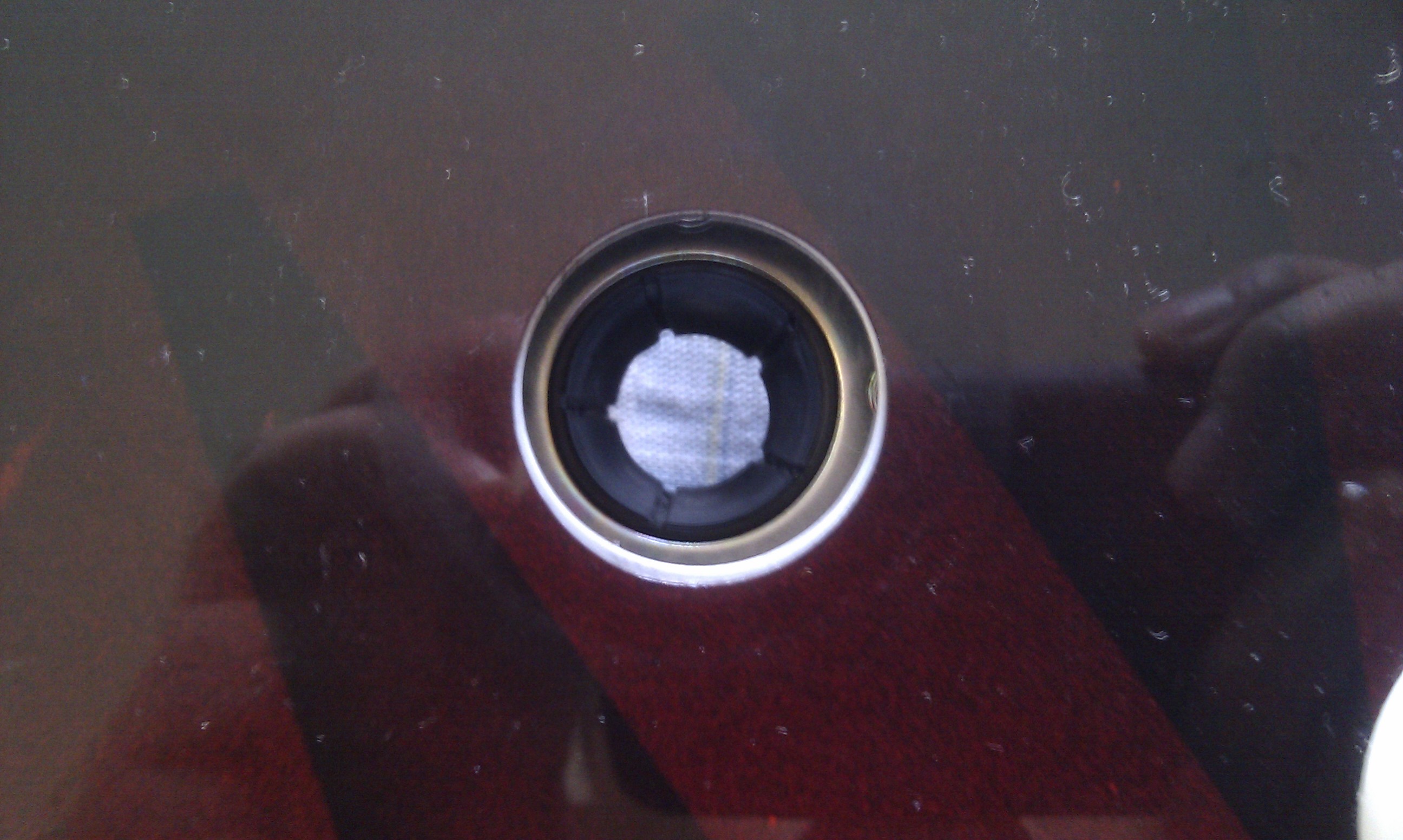

Between the joystick and top panel goes the pivot cilinder

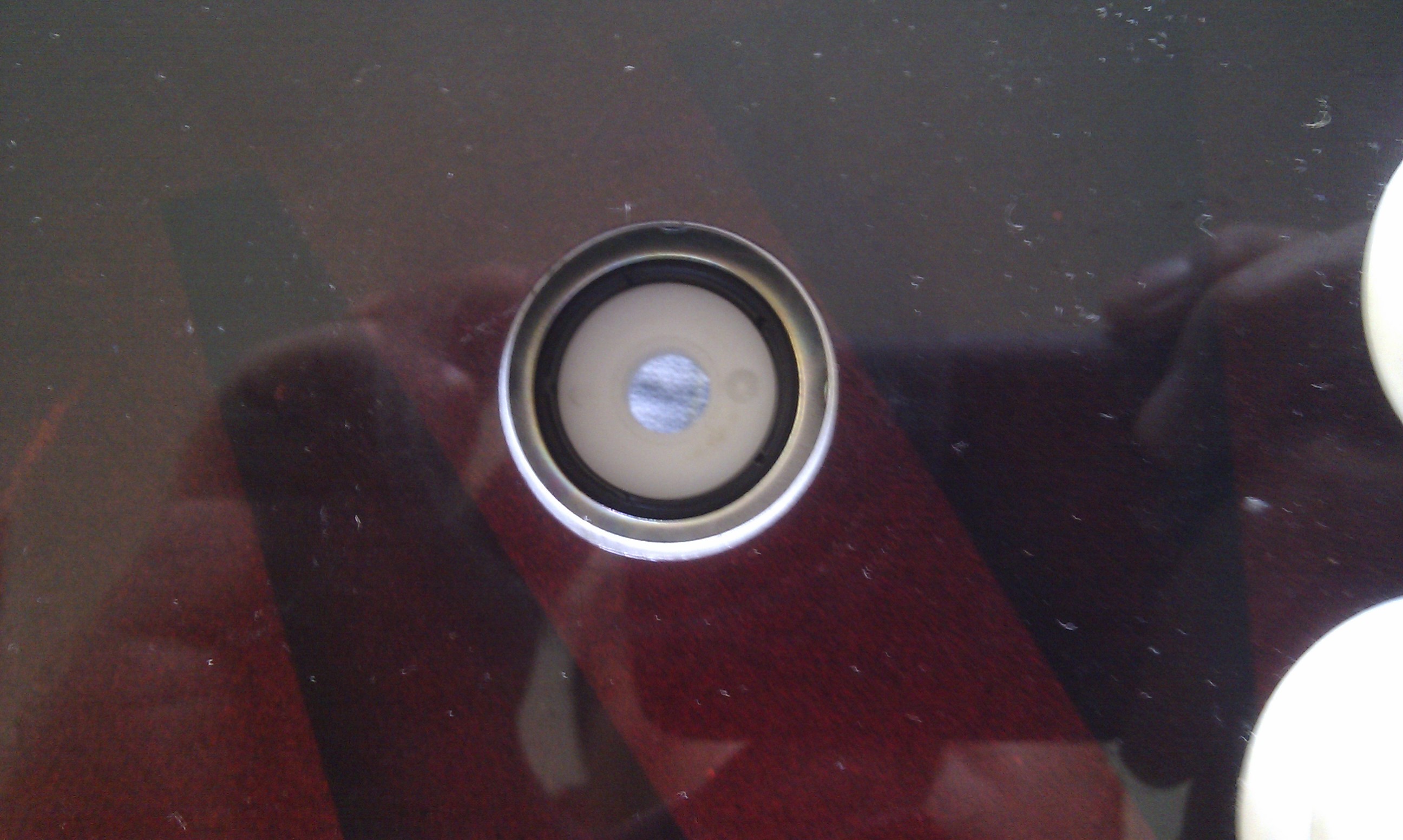

Put another dustwasher between the joystick and top panel

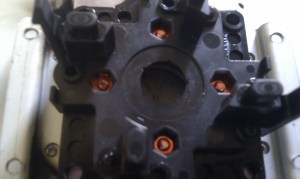

Joystick

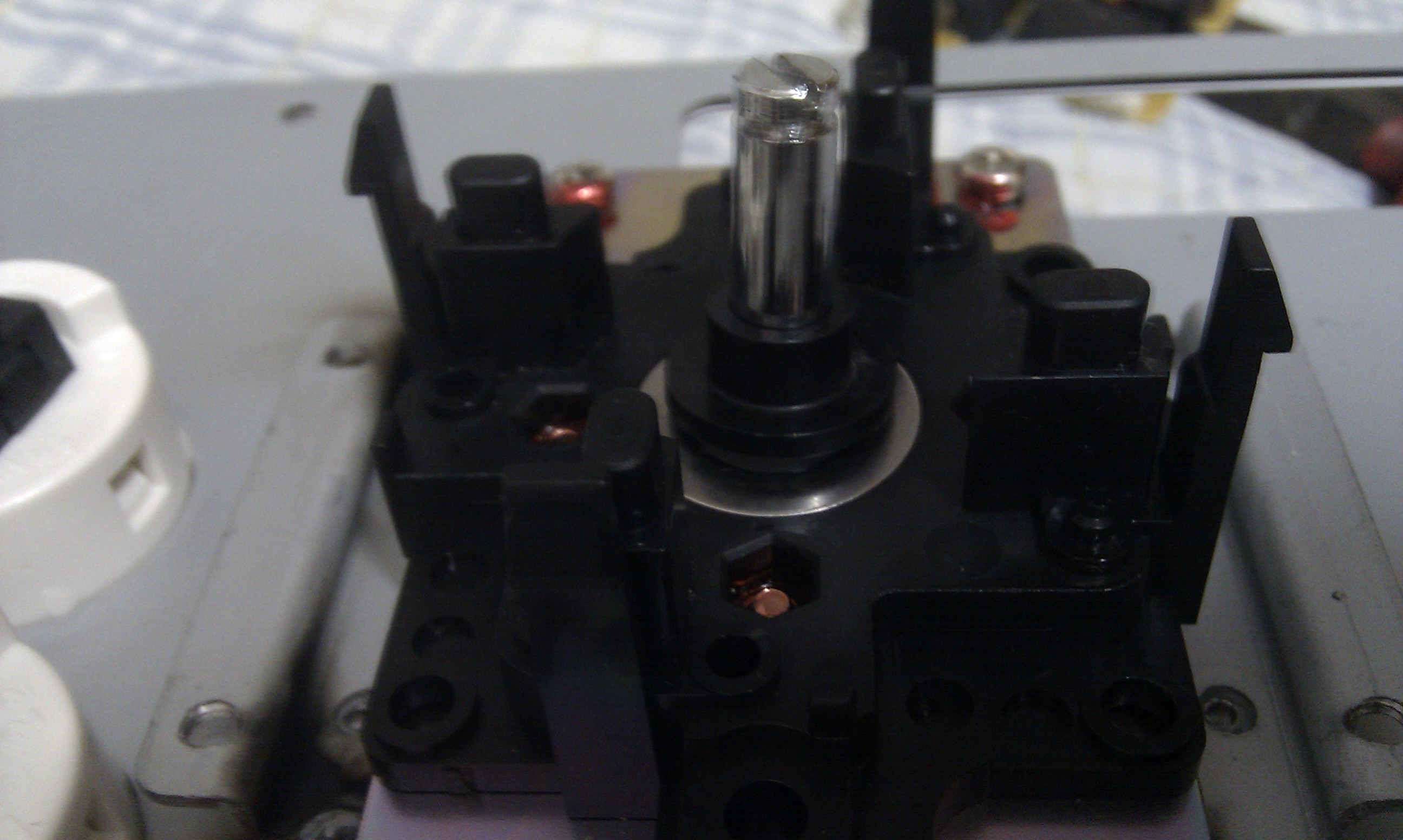

Joystick with Metal Washer
Joystick with Metal Washer and Spring Cover

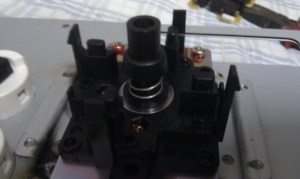

Joystick with Metal Washer, Spring Cover, Spring and Actuator

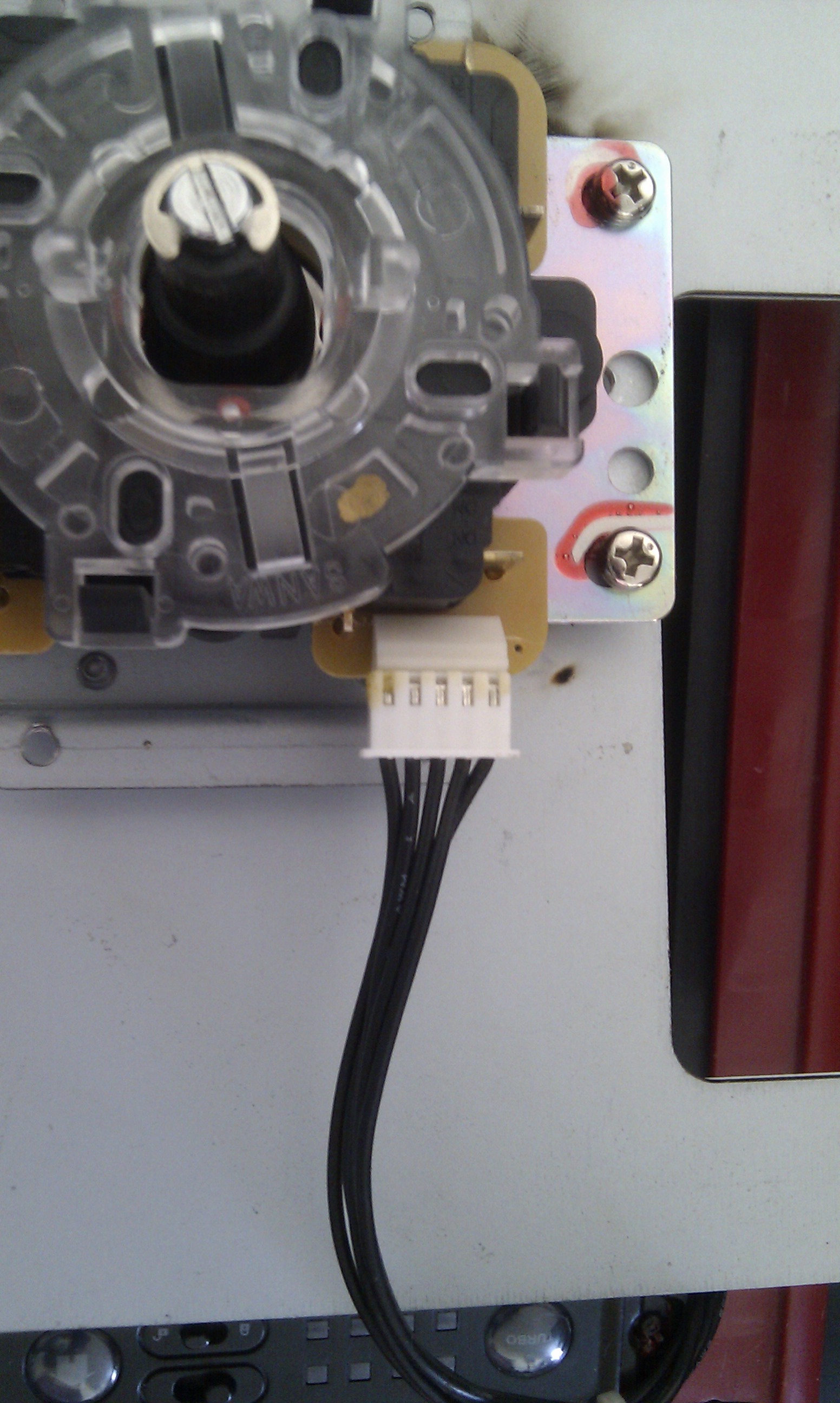

When you connect the cable to the 5 pin connector, make sure that the rails are facing up (away from the top panel)
